12V/24V Chrome 105mm PWM Dimmable LED Downlight

  • Code: ALC95
  • |
  • Stock: In Stock

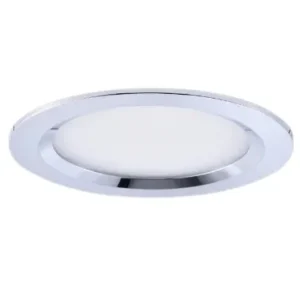

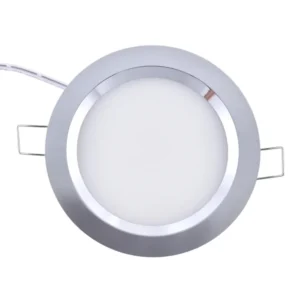

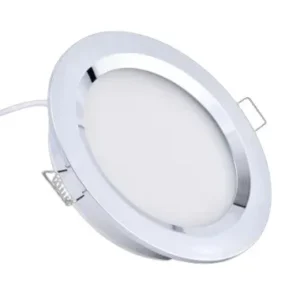

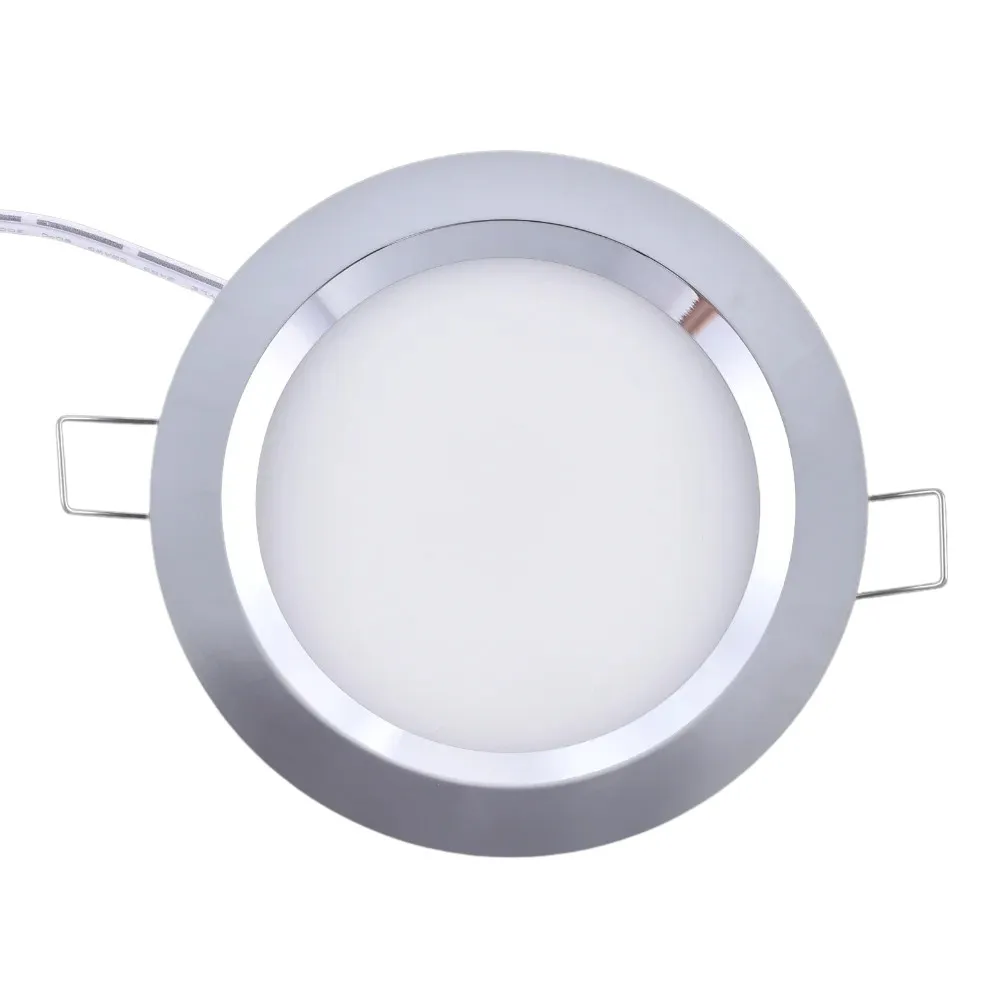

Large polished chrome downlight, designed for mounting into a suitable hole. The light is 105mm diameter and, uses 6W and provides over 500 lumens output on full brightness.

This light may be used direct with a standard light switch to turn on/off and is also designed to operate via pulse width dimming (PWM), proving a smooth dimming when used with a suitable dimmer or dimming circuit.

The light is regulated from 10-30V so is suitable for 12V or 24V use.

The unit is comes with an chrome bezel and requires a 95-100mm cut-out and enable the light to be mounted with a low profile.

The light fittings are designed to use as new or replacement cabin lighting.

Available in our smaller 86mm diameter too.



Polished chrome downlight designed for recess mounting, made with a metal body and bezel. The light fitting has built in LEDs, providing a bright light for just 6W of power.  This fitting does not have a built in switch so is suitable for use where a separate switch is used – e.g an existing wall switch and the circuitry inside the light is allows for dimming via a PWM dimmer.

These are regularly used in campers, caravans and boats from the 12V or 24V leisure supply and also in the home via a suitable 12VDC or 24DC constant voltage LED driver.

Diameter – 105mm
Depth – 25mm
Cut-out for recess – 95-100mm
Beam Angle – 120 degrees
Regulated from 10-30V so suitable for use from either 12VDC or 24VDC supply with allowance for voltage fluctuations
Approximate light output – 505lm (warm white, 2700K), 550lm (cool white, 6500K)
6.0W power consumption
3 year guarantee

Suitable dimming controllers include:
Single Colour Controller – FUT036
Wifi 5 in 1 Controller (for either RGB, RGBW, RGBCWW, CCT or single colour LED strip) – WL5

£31.49
