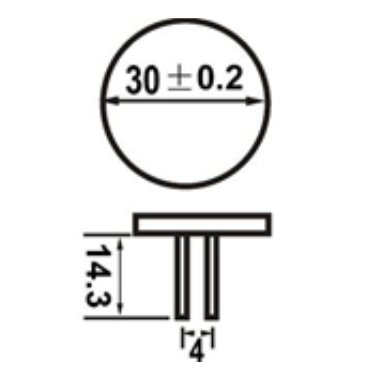

10-LED-Back-Pin-Dimensions
10-LED-Back-Pin-G4
LED Colour

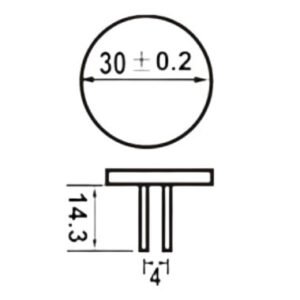

10-LED-Back-Pin-Dimensions
||

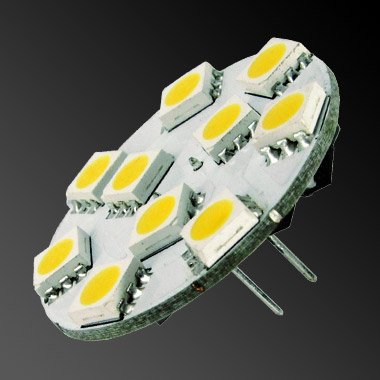

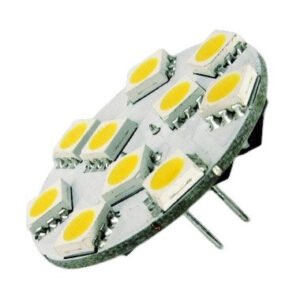

10 LED Back Pin G4

  • Code: 10LEDg4backpin
  • |
  • Stock: In Stock

The 10-LED G4 has been designed to replace a 10W G4 halogen but provide approximately 65% more light. Designed to sit straight back into the light fitting. Standard pin length is approximately 15mm, this can be extended to suit as required. We have been asked made these pins 35mm long to fit certain fittings. If you require longer pins please add a note to the order on the checkout page- there will be no additional cost for this.

Regulated from 10-30V DC, designed for use on 12V or 24V systems
Includes fuse and voltage spike protection
Diameter – 30mm
Approximate light output – 223lm CW / 209lm WW
1.6W power consumption
3 year guarantee

The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. The 10-LED back pin is designed to replace a 10W halogen and provides approximately 65% more light. This G4 sits straight back in the light fitting. We also have this 10-LED G4 as a side pin version and in smaller and larger versions too if a different light output is required.

£4.79
