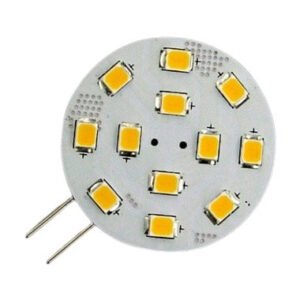

12 LED Side Pin G4

  • Code: 12LEDSPG4
  • |
  • Stock: In Stock

The 12-LED G4 is ideal for ceiling lights as it replaces the 20W halogen and uses just 2.0W. Designed to sit sideways in the light fitting, a back pin version is also available.

Regulated from 10-30V DC, designed for use on 12V or 24V systems
Includes fuse and voltage spike protection

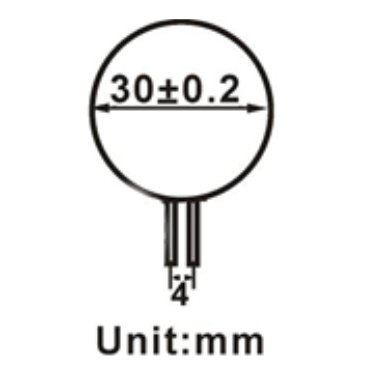

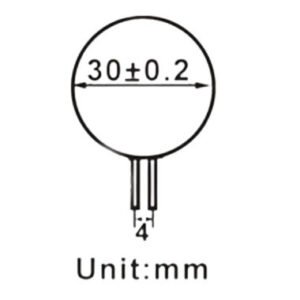

Diameter – 30mm
Approximate light output – 268lm CW / 240lm WW
2.0W power consumption
Not polarity sensitive
3 year guarantee

The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. The 12-LED side pin is designed to replace a 20W halogen. This G4 sits sideways in the light fitting. We also have this 12-LED G4 as a back pin version and in smaller and larger versions too if a different light output is required. All of our G4 LED lamps are voltage regulated and are not polarity sensitive – i.e. the LED will light up whichever way the positive and negative power is applied so no rewiring is required.

£4.99

You may be interested in…

  • 6 LED 42mm Festoon

    6 LED 42mm Festoon

    £4.29
    Select options This product has multiple variants. The options may be chosen on the product page
  • 6 LED 37mm Festoon

    6 LED 37mm Festoon

    £4.29
    Select options This product has multiple variants. The options may be chosen on the product page
  • 27-LED-ES-Golf Ball

    27 LED E27 Bus Bulb

    £8.29
    Select options This product has multiple variants. The options may be chosen on the product page
  • 12-LED-G4-Tower

    12 LED G4 Tower

    £4.29
    Select options This product has multiple variants. The options may be chosen on the product page
  • You may also like…

    Description

    The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. The 12-LED side pin is designed to replace a 20W halogen. This G4 sits sideways in the light fitting. We also have this 12-LED G4 as a back pin version and in smaller and larger versions too if a different light output is required. All of our G4 LED lamps are voltage regulated and are not polarity sensitive – i.e. the LED will light up whichever way the positive and negative power is applied so no rewiring is required.

    Additional information

    LED Colour

    ,
