27 LED Bayonet Replacement Lamp
27 LED Bayonet Replacement Lamp
||

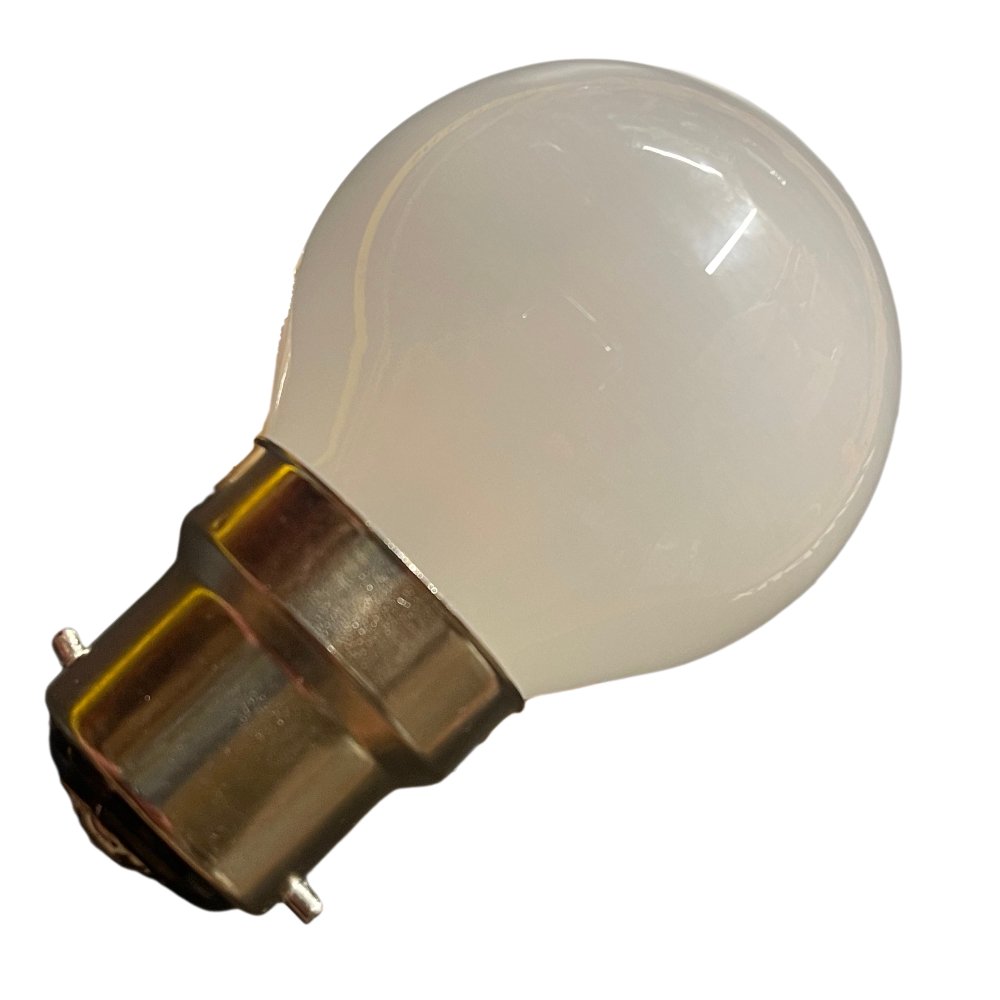

27 LED Bayonet B22 / BC Bus Bulb

  • Code: 27LEDB22
  • |
  • Stock: In Stock

Our unique 27-LED lamp has been designed to use in table lamps, wall lights and ceiling lights as light is projected in all directions. Supplied in a glass pearl bulb, sometimes called a ‘bus bulb’ or ‘golf ball’ light. Not to be confused with the plastic moulded bulbs, we have been making this style in halogen for 20 years and have now replaced the halogen lamp with our high quality LEDs.

Used by many heritage railways up and down the country and in Europe – please contact us direct for quantity discounts.

Regulated from 10-30V so suitable for 12V and 24V systems
Includes voltage spike suppressor and fused circuit
Diameter – 45mm, length – 69mm (including cap)
Approximate Light Output – 130lm
1.6W power consumption
CE approved and RoHS compliant
1 year guarantee

The bayonet fitting is commonly used in awning lights, spot lights, reading lights and many light fittings in the American RVs. The tungsten bayonet is easily replaced with an LED alternative. In order to identify the most suitable replacement for the bayonet lamp it is necessary to find the diameter of the metal cap and count the number of metal ‘spots’ located on the base. The most common diameter is a 15mm cap, although standard household 22mm versions are sometimes used as well as Edison Screw caps. If the cap has a 15mm diameter and one metal spot is located on the bottom , the lamp is a Ba15s, 1156 or SCC version, if two spots are located on the bottom, the lamp is a Ba15d, 1142 or SBC version. Occasionally the 15mm cap can have two metal spots and off set pins, in which case you require the Bay15d/1157 cap. Edison Screw caps are comely 14mm diameter (E14 or SES) or 27mm diameter (E27 or ES).

The spotlight LEDs are used to provide light in one direction and are best used in reading lights and spotlights, where light is required in a single direction. The tower types provide light in all directions and are suitable to light up wall lights, ceiling lights and large fittings found in American RVs and boats. For outside light replacements, we recommend our 12-LED bayonet board or 21-LED bayonet board which projects light out from the surface.

£9.49
