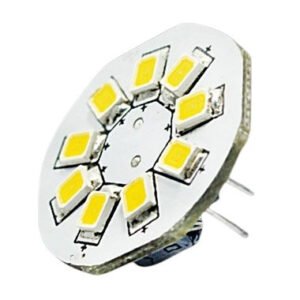

9 LED Back Pin G4

  • Code: 9LEDBPG4
  • |
  • Stock: In Stock

The 9-LED G4 has been designed to replace a 10W G4 halogen but provide approximately 85% more light. Designed to sit straight back into the light fitting. Standard pin length is approximately 15mm, this can be extended to suit as required. We have been asked made these pins 35mm long to fit certain fittings. If you require longer pins please add a note to the order on the checkout page- there will be no additional cost for this.

Regulated from 10-30V DC, designed for use on 12V or 24V systems
Voltage regulator, voltage spike suppressor and fuse fitted
Diameter – 24mm
Approximate light output – 211lm CW / 180lm WW
1.6W power consumption
Not polarity sensitive
3 year guarantee

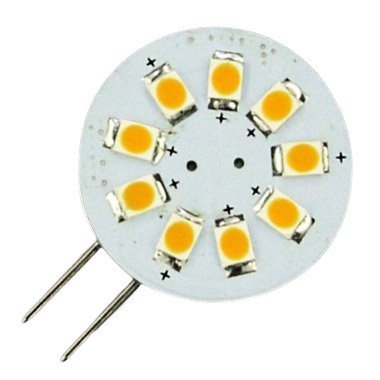

The G4 halogen is one of the most common lamps used in caravans and motorhomes and is easily identified as a small glass lamp with two short pins spaced 4mm apart. The G4 halogen is commonly used in ceiling lights, wall lights, downlights and reading lights and is easily replaced with an LED alternative. This disc type LED G4 is used to provide light in one direction and are best used in downlighters, ceiling lights and spotlights. The 9-LED back pin is designed to replace a 10W halogen and provides approximately 40% more light. This G4 sits straight back in the light fitting. We also have this 9-LED G4 as a side pin version and in smaller and larger versions too if a different light output is required.

£4.29
