12V LED Strip Voltage Regulator

Our 12V LED Flexible Strip Voltage Regulator unit, allowing any of our 12V LED Flexible strip to be operated from a 12-30V input voltage (up to a maximum of 4A output which is equivalent to 10m of our 4.8W/m LED strip or 6.5m of our 7.2W/m LED strip or 5m of our 9.6W/m LED strip) .

Many leisure vehicles such as caravans, motorhomes or boats operating on 12V systems can have voltages over 14V. Our LED lamps are all voltage regulated to tolerate these changes but our LED strip has always been designed for either 12V or 24V systems (with a level of tolerance for leisure use). However, now any of our 12V flexible LED strip can be safely operated with an input voltage of 12-30V by placing the regulator circuit in-line.

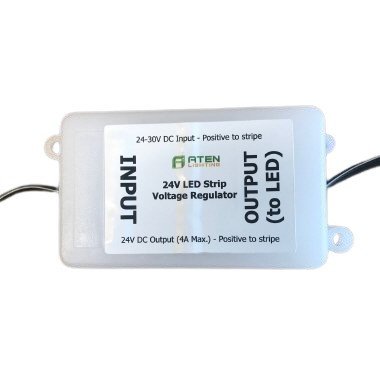

The unit is small and easy to tuck away under or over a cupboard using the mounting holes and will pass through a 50mm hole. The unit is clearly labelled and just requires correct connection to the positive and negative wiring with all LEDs fed from the output side now voltage regulated.

Dimensions: (HxWxD): 27x96x46mm
Input/Output Cable length: 30cm
Input voltage range: 12-30V DC
Output Voltage:12V DC (max. 4A)
