12V Touch Dimmable LED Lights – Aluminium Downlight

  • Code: ATA3WRD
  • |
  • Stock: In Stock

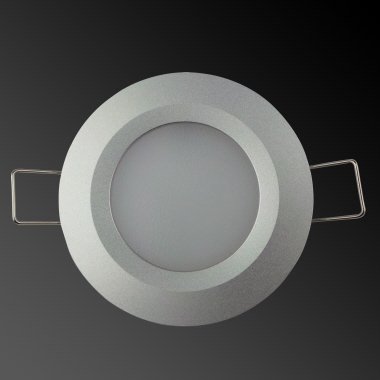

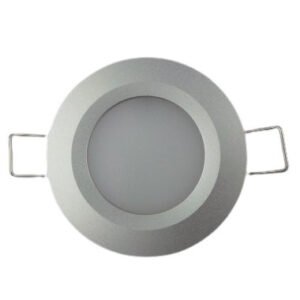

Aluminium touch dimmable/switched downlight designed for recess mounting, made with a metal body and bezel. The light fitting has built in LEDs, providing a bright light for just 3W of power.  This fitting is turned on/off by touching the chrome bezel and a long press will dim/brighten the light.

Diameter: 69mm, depth just 15mm (very low profile)
Cut-out for recess: 58mm-62mm
Input Voltage: 10-30V DC
Approximate light output: 230lm (warm white), 250lm (cool white)
3.0W power consumption
2 years guarantee

Aluminium touch dimmable downlight with built in LEDs, suitable for 12V DC or 24V DC use as it is regulated from 10-30V.  Requires an LED driver if being used in the house, view our range here.

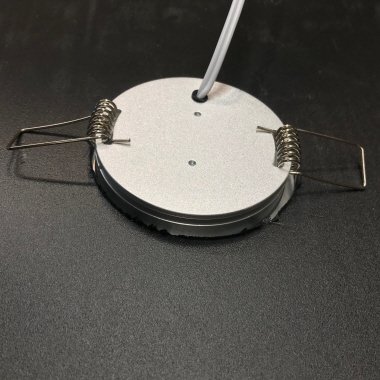

A 58-62mm cut-out is required, spring clips are located to the rear used to hold the light into place. The light can be used as a replacement for older fittings or can be used to provide additional lighting under cabinets or where required.  Our demonstration video below shows the switching and dimming using our nickel version.

Includes a built-in switch so only requires a simple two core, unswitched supply.  Please note, these lights will not operate via a separate switch (e.g. wall switch), they can only be turned on/off and dimmed via the inbuilt switch. Please see our LED aluminium slim downlight here if an unswitched version is required.

As these units operate via conductivity they will not operate correctly if mounted into metal or if the unit or mounting springs touch any metal trim (including metal covered insulation to the rear of panels).

Also available with an black, chrome, gold, nickel or white finish – please see out other listings.

£12.99

You may be interested in…

  • Dim Slim LED Recess Downlight

    12V Touch Dimmable LED Lights – Nickel Downlight

    £13.99     Select options This product has multiple variants. The options may be chosen on the product page
  • Aten Touch Black Front

    LED Black Switched ‘LED Touch’ Downlight, Recess Mounted

    £13.99     Select options This product has multiple variants. The options may be chosen on the product page
  • Silver Touch Front

    LED Silver Switched ‘LED Touch’ Downlight, Recess Mounted

    £13.49     Select options This product has multiple variants. The options may be chosen on the product page
  • Small Chrome Recess

    Chrome Small Recess LED Ceiling Light

    £39.99     Select options This product has multiple variants. The options may be chosen on the product page

    • You may also like…

    Description

    Aluminium touch dimmable downlight with built in LEDs, suitable for 12V DC or 24V DC use as it is regulated from 10-30V.  Requires an LED driver if being used in the house, view our range here.

    A 58-62mm cut-out is required, spring clips are located to the rear used to hold the light into place. The light can be used as a replacement for older fittings or can be used to provide additional lighting under cabinets or where required.  Our demonstration video below shows the switching and dimming using our nickel version.

    Includes a built-in switch so only requires a simple two core, unswitched supply.  Please note, these lights will not operate via a separate switch (e.g. wall switch), they can only be turned on/off and dimmed via the inbuilt switch. Please see our LED aluminium slim downlight here if an unswitched version is required.

    As these units operate via conductivity they will not operate correctly if mounted into metal or if the unit or mounting springs touch any metal trim (including metal covered insulation to the rear of panels).

    Also available with an black, chrome, gold, nickel or white finish – please see out other listings.

    Additional information

    LED Colour

    ,
