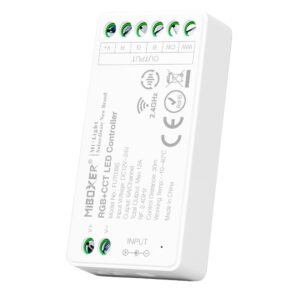

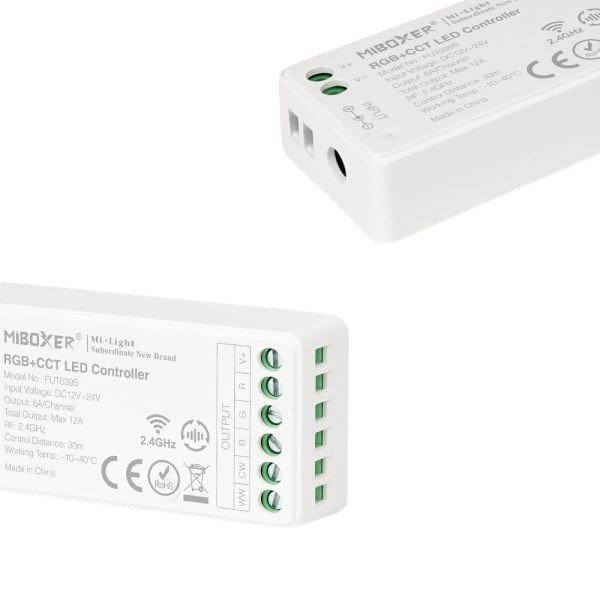

Mi-Light RGB+CCT Controller (FUT039)

  • Code: ALRGBCW39
  • |
  • Stock: In Stock

£9.99

Mi-Light radio frequency RGB+CCT LED controller for use with 12V or 24V RGBCWW LED lighting via a suitable remote control.

Brand: Mi-Light
Model: FUT039
Voltage : 12V or 24V
Output Control: 5 circuits (red, green, blue, warm white and cool white)
Maximum load: 6A per channel
Controller Dimensions: 119mm * 38mm * 22mm tall

Please note this is the LED controller only and requires a suitable remote to pair to and operate the LEDs. We have a range of possible options for the remote which can be paired with the controller listed below.

If purchased with the remote and LED we will pair the remote to the controller so the items are ready to connect and use.

Mi-Light controller to operate 12V or 24V RGB+CCT (colour changing with colour temperature adjustment too) LED via a suitable remote. Suitable for use with RGBCWW LED lighting. Just connect a 12V supply to the input side of the unit and connect your RGBCWW LED to the output of the unit and when synchronised to your remote control the unit can then be used to change colours or change LED colour temperature from warm white through to cool white.

Maximum output current – 6A per channel.

Suitable Remote Controls include:

Black Round Rainbow Remote – MiLight S2-B
White Round Rainbow Remote – MiLight S2-W
RGBW+CCT Single Zone Remote – FUT088
RGBW+CCT 8- Zone Remote (for up to 8 zones to be set to operate individually or at the same time) – FUT089
